16SVPC100M | Panasonic
Polymer capacitor, SMD, 100 µF, 16 V, ±20 %, 16SVPC100M
Unit Price (€ / pc.)
0.4998 € *
Standard delivery time from the manufacturer is: On Request

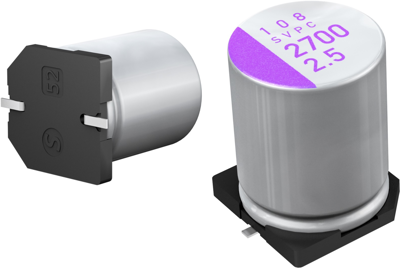

Aluminium hybrid polymer capacitor, 16SVPC100M, Panasonic
Surface Mount Type
Features
- Low ESR (9 mΩ to 30 mΩ)
- Large capacitance (2700 μF max.)
- RoHS compliance, Halogen free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ESR (Equivalent Series Resistance) | 24 mΩ | |
| Ripple current | 2.49 A | |
| Length | 6 mm | |
| max. operating temperature | 105 °C | |
| diameter | 6.3 mm | |
| Capacity | 100 µF | |
| Rated voltage (DC) | 16 V | |
| Tolerance | ±20 % | |
| min. operating temperature | -55 °C | |
| Design | SMD |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 2A |
| Original Packaging | Reel with 1,000 pieces |
| Country of origin | JP |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
