AQZ202J | Panasonic
PhotoMOS Relay, 1 Form A (N/O), 3 A, 60 V AC/DC, SIL-4, AQZ202J
Unit Price (€ / pc.)
11.5668 € *
Available: 91 pcs.
Total Price:
11.57 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5668 €
25 pcs.
10.1864 €
50 pcs.
9.8294 €
200 pcs.
9.2701 €
500 pcs.
8.9250 €
*incl. VAT plus shipping costs
Subject to prior sale

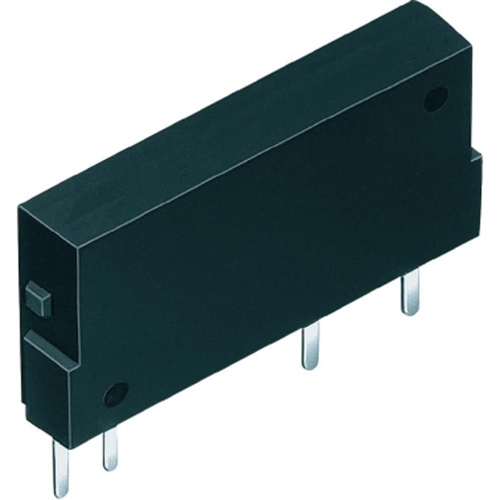

PhotoMOS relay, AQZ202J, PANASONIC
Features
- Control low-level signal
- Low-level off-state leakage current
- Extremely low on-resistance
- PC board layout is simplified
Applications
- High-speed inspection machines
- IC checker
- Office machines
- Telecommunication
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form A (N/O) | |
| Load current | 3 A | |
| Load voltage | 60 V AC/DC | |
| Isolation voltage | 2.5 kV | |
| Connection | PCB connection | |
| Enclosure | SIL-4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85364190 |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
