PM-T65W-P | Panasonic

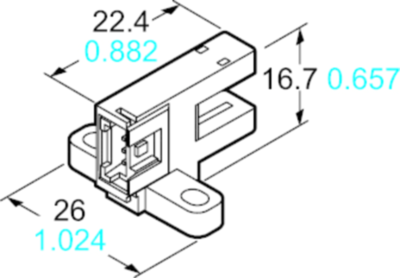

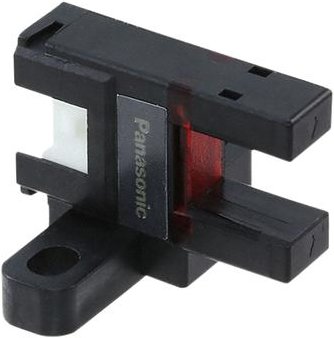

Fork light barrier, 0.006 m, PNP, 5-24 VDC, connector, IP64, PM-T65W-P
Unit Price (€ / pc.)
32.3561 € *
Standard delivery time from the manufacturer is: 20 Weeks
Reflecting light barrier, CY-111VA, PANASONIC
The CY-111VA is a cylindrical photoelectric sensor and has a diffuse reflective type with sensitivity adjuster. It has a M18 thread size for convenient mounting with a IP67 strong resistance.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | connector | |
| Detecting distance | 0.006 m | |
| Degree of protection (IP) | IP64 | |
| Design | K | |
| Activation time | 0.02 ms | |
| Output | PNP | |
| Power supply | 15 mA | |
| Product type | fork light barrier | |
| Voltage | 5-24 VDC | |
| Switching logic | light ON/dark ON |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
