PM-R45-P-C3 | Panasonic

Fork light barrier, 0.006 m, NPN, 5-24 VDC, cable connection, IP64, PM-R45-P-C3

Order No.: 28G1523
EAN: 4099889432275
MPN:
PM-R45-P-C3
Series: PM-45

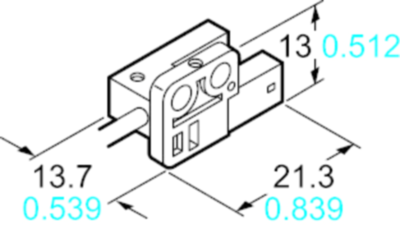

PM-R45-P-C3 Panasonic Optical Sensors Image 1

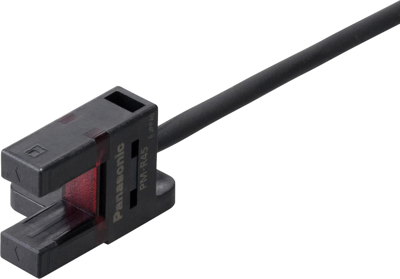

PM-R45-P-C3 Panasonic Optical Sensors Image 2
Image may differ
Unit Price (€ / pc.)
44.9344 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
44.93 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
44.9344 €

Photoelectric sensor, EX19B, PANASONIC

The EX19B is one of the smallest sensor, the ultra small size allows for mounting in the smallest areas. A bright 2-color indicator on the sensor head allows for quick determination of the sensor state. The product is also equipped with a 0.5ms response time for high-speed detection and an IP-67 rated housing for wash-down environments.

Technical specifications
Detecting distance 0.006 m
Degree of protection (IP) IP64
Output NPN
Product type fork light barrier
Design K
Voltage 5-24 VDC
Power supply 15 mA
Connection cable connection
Activation time 0.02 ms
Switching logic light ON/dark ON
Logistics
Country of origin JP
Customs tariff number 85365019
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
