PM-R25-P | Panasonic

Fork light barrier, 0.006 m, PNP, 5-24 VDC, cable connection, IP64, PM-R25-P

Order No.: 28G1499
EAN: 4099889432077
MPN:
PM-R25-P
Series: PM-25

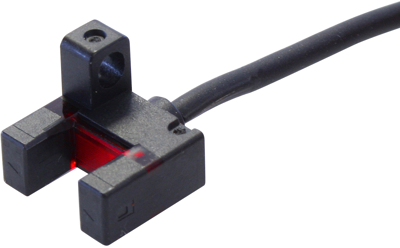

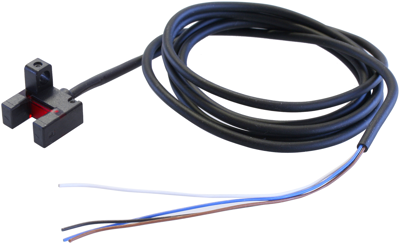

PM-R25-P Panasonic Optical Sensors Image 1
PM-R25-P Panasonic Optical Sensors Image 2
PM-R25-P Panasonic Optical Sensors Image 3
Image may differ
Unit Price (€ / pc.)
35.6048 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
35.60 € *
Price list
Quantity
Price per unit*
1 pcs.
35.6048 €
10 pcs.
32.7607 €
25 pcs.
30.1427 €
50 pcs.
27.4414 €
*incl. VAT plus shipping costs
Subject to prior sale

Micro photoelectric sensor, PM-R25-R, PANASONIC

The PM-R25-R is as ultra-small U-shaped micro photoelectric sensor. This product features a through beam detection type with the emitter and receiver contained within a single U-shaped housing. A large operating indicator lights up to make operation identification easy to see from above and from the sides. The sections where stress concentrates, such as the connecting section of the cable and internal circuit are covered with a resin. This helps prevent malfunctions caused by vibrations and impacts

Technical specifications
Filter Property Value
Connection cable connection
Detecting distance 0.006 m
Product type fork light barrier
Degree of protection (IP) IP64
Output PNP
Voltage 5-24 VDC
Switching logic light ON/dark ON
Design K
Power supply 15 mA
Activation time 0.02 ms
Logistics
Property Value
Customs tariff number 85365019
Country of origin JP
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
