EX29APN | Panasonic

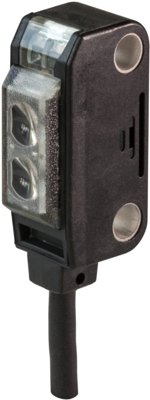

Reflecting light barrier, PNP, 12-24 VDC, cable connection, IP67, EX29APN
Unit Price (€ / pc.)
153.9741 € *
Standard delivery time from the manufacturer is: 9 Weeks
Micro photoelectric sensor, PM-F45-C3, PANASONIC
The PM-F45-C3 is as ultra-small U-shaped micro photoelectric sensor. This product features a through beam detection type with the emitter and receiver contained within a single U-shaped housing. A large operating indicator lights up to make operation identification easy to see from above and from the sides. The sections where stress concentrates, such as the connecting section of the cable and internal circuit are covered with a resin. This helps prevent malfunctions caused by vibrations and impacts
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Activation time | 0.5 ms | |
| Switching logic | light ON | |
| Connection | cable connection | |
| Degree of protection (IP) | IP67 | |
| Power supply | 50 mA | |
| Output | PNP | |
| Product type | reflecting light barrier | |
| Voltage | 12-24 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
