EX22APN | Panasonic

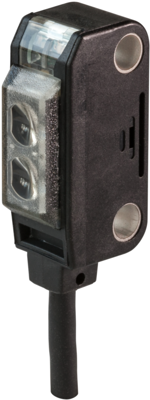

Diffuse mode sensor, 0.16 m, PNP, 12-24 VDC, cable connection, IP67, EX22APN
Unit Price (€ / pc.)
131.6378 € *
Standard delivery time from the manufacturer is: 12 Weeks
Photoelectric sensor, EX-Z13A, PANASONIC
The thinnest sensor with dimension of 3 mm has been achieved by utilizing new semiconductor packaging technology that does not use wire bonding. The small unit size allows installation of sensor in a narrow space where only a conventional fiber sensor head could be installed before. The built-in amplifier also saves on installation space
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Activation time | 0.5 ms | |
| Switching logic | light ON | |
| Connection | cable connection | |
| Degree of protection (IP) | IP67 | |
| Power supply | 50 mA | |
| Detecting distance | 0.16 m | |
| Output | PNP | |
| Product type | diffuse mode sensor | |
| Voltage | 12-24 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
