EX-Z11B-R | Panasonic

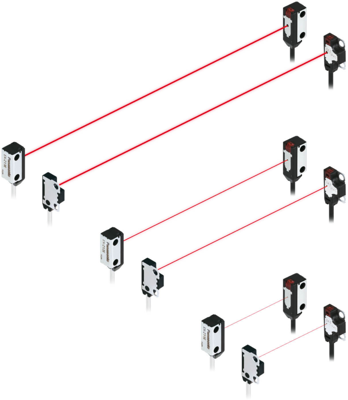

One way light barrier, 0.05 m, NPN, 12-24 VDC, cable connection, IP67, EX-Z11B-R
Unit Price (€ / pc.)
148.393 € *
Standard delivery time from the manufacturer is: On Request
Diffuse reflective sensor, CX421P, PANASONIC
The CX421P has a high luminance red LED spot beam which provides bright visibility enabling the sensing position to be checked at a glance. Because it achieved small beam spot approx. ø2 mm ø0.079 in at setting distance 100 mm 3.937 in, approx. ø5 mm ø0.197 in at setting distance 200 mm 7.874 in, even the minutest object can be accurately detected.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output | NPN | |
| Power supply | 20 mA | |
| Switching logic | dark ON | |
| Degree of protection (IP) | IP67 | |
| Detecting distance | 0.05 m | |
| Connection | cable connection | |
| Activation time | 0.5 ms | |
| Product type | one way light barrier | |
| Voltage | 12-24 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
