EKMC7606111K | Panasonic
PIR motion sensor, 12 m, 62°/62°, digital, 3-6 VDC, THT, EKMC7606111K
Unit Price (€ / pc.)
7.8183 € *
Standard delivery time from the manufacturer is: 26 Weeks

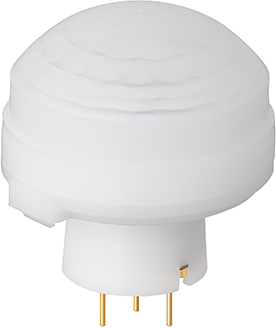

Pyroelectric infrared sensor, EKMC7606111K, Panasonic
Pyroelectric infrared motion sensor from Panasonic for optimal usability and reliability. Panasonic develops and produces PIR motion sensor, which combine easy integration, high reliability and environment-friendly materials.
Features
- Easy design-in
- Small and fancy lens design
- Lead-free pyroelectric element
- Low current consumption
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | THT | |
| Detecting distance | 12 m | |
| Detection range vertically | 62 ° | |
| Activation time | 1 ms | |
| Detection range horizontally | 62 ° | |
| Output | digital | |
| Power supply | 0.17 mA | |
| Product type | PIR motion sensor | |
| Voltage | 3-6 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 90318080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | 4,4'-isopropylidenediphenol |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
