EKMB1293111 | Panasonic
PIR motion sensor, 3 m, 91°/91°, digital, THT, EKMB1293111
Unit Price (€ / pc.)
15.8627 € *
Standard delivery time from the manufacturer is: On Request

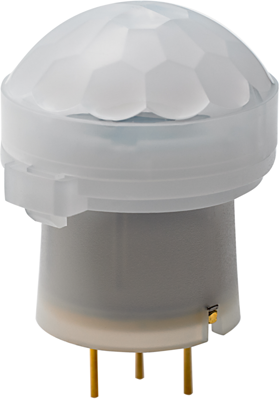

PIR motion sensor, EKMB1293111, PANASONIC
The EKMB1293111 is a standard and slight motion detection type with lighting controls for restrooms, changing rooms, smoking cabins and hotel rooms. The rectangular center zone is optimized detecting smallest movements.
Applications
- Smart luminaires
- Smart LED bulbs
- Ventilation systems and air conditioners
- Hot desking
- Digital signage
- Vending machines
- Wake-up switch for displays
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output | digital | |
| Power supply | 0.002 mA | |
| Detection range vertically | 91 ° | |
| Detection range horizontally | 91 ° | |
| Detecting distance | 3 m | |
| Connection | THT | |
| Activation time | 1 ms | |
| Product type | PIR motion sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90318080 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | 4,4'-isopropylidenediphenol |
| SVHC free | No |
