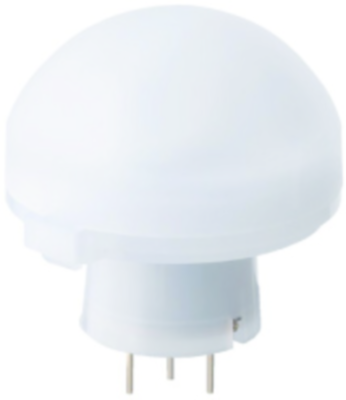

EKMB1203113 | Panasonic
PIR motion sensor, 12 m, 108°/99°, digital, THT, EKMB1203113
Unit Price (€ / pc.)
16.7195 € *
Standard delivery time from the manufacturer is: On Request
Micro photoelectric sensor, PM-U25-R, PANASONIC
The PM-U25-R is as ultra-small U-shaped micro photoelectric sensor. This product features a through beam detection type with the emitter and receiver contained within a single U-shaped housing. A large operating indicator lights up to make operation identification easy to see from above and from the sides. The sections where stress concentrates, such as the connecting section of the cable and internal circuit are covered with a resin. This helps prevent malfunctions caused by vibrations and impacts
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output | digital | |
| Power supply | 0.002 mA | |
| Detection range vertically | 99 ° | |
| Detection range horizontally | 108 ° | |
| Detecting distance | 12 m | |
| Connection | THT | |
| Activation time | 1 ms | |
| Product type | PIR motion sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90318080 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | 4,4'-isopropylidenediphenol |
| SVHC free | No |
