EKMB1203111 | Panasonic

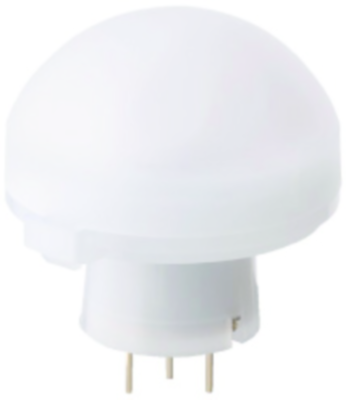

PIR motion sensor, 12 m, 108°/99°, digital, THT, EKMB1203111
Unit Price (€ / pc.)
16.7195 € *
Standard delivery time from the manufacturer is: On Request
PIR motion sensor, EKMC1601112, PANASONIC
The EKMC1601112 is a standard detection type flat lens sensor for an unobtrusive integration with lighting controls for offices and smart homes.
Applications
- Smart luminaires
- Smart LED bulbs
- Ventilation systems and air conditioners
- IP cameras
- Digital signage
- Wake-up switch for displays
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output | digital | |
| Power supply | 0.002 mA | |
| Detection range vertically | 99 ° | |
| Detection range horizontally | 108 ° | |
| Detecting distance | 12 m | |
| Connection | THT | |
| Activation time | 1 ms | |
| Product type | PIR motion sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90318080 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | 4,4'-isopropylidenediphenol |
| SVHC free | No |
