EKMB1106112 | Panasonic
PIR motion sensor, 12 m, 62°/62°, digital, 2.3-4 VDC, THT, EKMB1106112
Unit Price (€ / pc.)
15.3748 € *
Standard delivery time from the manufacturer is: On Request

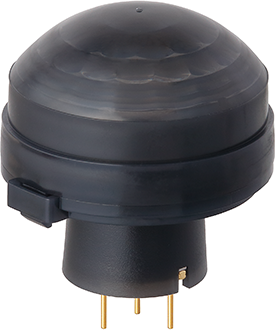

Pyroelectric infrared sensor, EKMB1106112, Panasonic
Pyroelectric infrared motion sensor from Panasonic for optimal usability and reliability. Panasonic develops and produces PIR motion sensor, which combine easy integration, high reliability and environment-friendly materials.
Features
- Easy design-in
- Small and fancy lens design
- Lead-free pyroelectric element
- Low current consumption
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output | digital | |
| Power supply | 0.001 mA | |
| Detection range vertically | 62 ° | |
| Detection range horizontally | 62 ° | |
| Detecting distance | 12 m | |
| Connection | THT | |
| Activation time | 1 ms | |
| Product type | PIR motion sensor | |
| Voltage | 2.3-4 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90318080 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | 4,4'-isopropylidenediphenol |
| SVHC free | No |
