TH833CJ | Panasonic

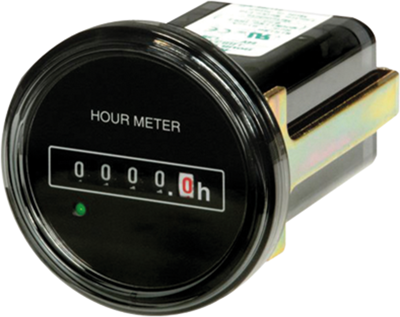

Hour meter, TH833CJ
Unit Price (€ / pc.)
84.1687 € *
Standard delivery time from the manufacturer is: On Request
Panel operating hours counters, type Panasonic TH8.
With roll counter mechanism, status display and value retention on power loss; Timer range: 0 to 9999.9 h. Resolution: 0.1 h (6.0 min). Ambient temperatures: –20 to +60 °C. Digit height: 5.0 mm. Degree of protection: IP 66. Certifications: CE, UL, CSA. Dimensions: 62 x 99 mm. Mounting dimensions: 53 x 89.5 mm. Panel thickness: 1.0 to 9.0 mm.
Type: TH833CJ, 12 VDC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max. hour counts | 9999.9 h | |
| Accuracy | 0.1 h | |
| Voltage | 12 VDC | |
| Assembly | panel mounting | |
| Connection | screw terminal | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90291000 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
