TH648CEJ | Panasonic

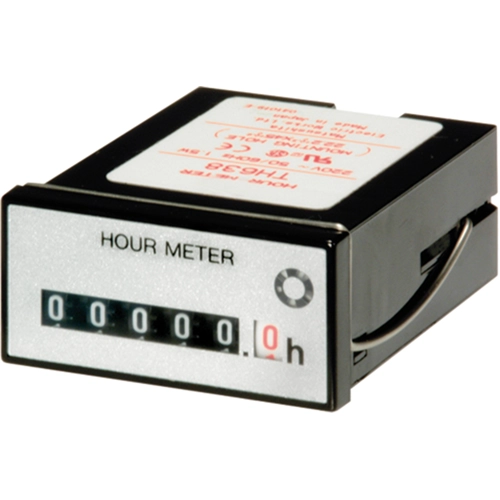

Hour meter, TH648CEJ
Unit Price (€ / pc.)
32.3204 € *
Standard delivery time from the manufacturer is: 15 Weeks
Panel operating hours counters, type Panasonic TH6.
With status display (rotation indicator) and plug-in connection; Operating voltage: 220 VAC. Timer range TH63/TH64: 0 to 99999.9/0 to 9999.9 h. Resolution: 0.1 h (6.0 min). Ambient temperatures: –10 to +50 °C. Dimensions: 48 x 24 x 57.5 mm. Front-panel cutout: 45 x 22.2 mm. Panel thickness: 5.0 to 9.0 mm.
Technical attributes (type, display, version): TH648CEJ, 5–digit, with Reset
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Accuracy | 0.1 h | |
| Assembly | panel mounting | |
| Max. hour counts | 9999.9 h | |
| Degree of protection (IP) | IP40 | |
| Height | 24 mm | |
| Voltage | 220 VAC | |
| Installation depth | 57.5 mm | |
| Connection | faston plug | |
| Width | 48 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 90291000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
