SFS448J | Panasonic
Safety relays, 4 Form A (N/O) + 2 Form B (N/C), 48 V (DC), 4.608 kΩ, 6 A, 30 V (DC), 250 V (AC), SFS448J
Unit Price (€ / pc.)
28.2982 € *
Standard delivery time from the manufacturer is: 56 Weeks

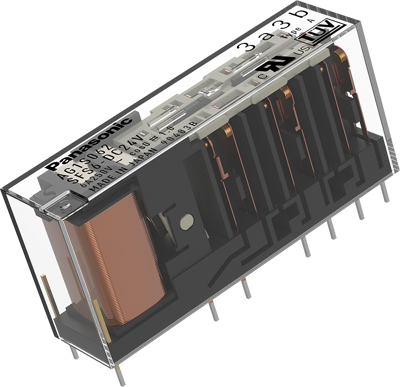

Safety relay, SFS448J, PANASONIC
The SFS448J is a slim compact safety relay with improved anti-shock properties meaning that the relay can be safely used in high shock and vibration environments such as in machine tools and other factory equipment. Also has a built-in LED that eliminates the need for design and mounting of separate LED circuit.
Features
- Fast response time is achieved
- Circuit is quickly opened to ensure safety
- High shock resistance
Applications
- Machine tools
- Robots
- Safety PLCs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (AC) | 250 V | |
| Connection | PCB connection | |
| Switching Voltage (DC) | 30 V | |
| Contact type | 4 Form A (N/O) + 2 Form B (N/C) | |
| Coil voltage (DC) | 48 V | |
| Contact material | AgSnO2 | |
| switching current | 6 A | |
| Coil resistance | 4.608 kΩ | |
| Breaking capacity | 1500 VA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
