S2L212ULCSAD | Panasonic

Relay, 2 Form A (N/O) + 2 Form B (N/C), 12 V (DC), 720 Ω, 4 A, 30 V (DC), 250 V (AC), bistable, S2L212ULCSAD

Order No.: 30G7424

EAN: 4099889395877

MPN:

S2L212ULCSAD

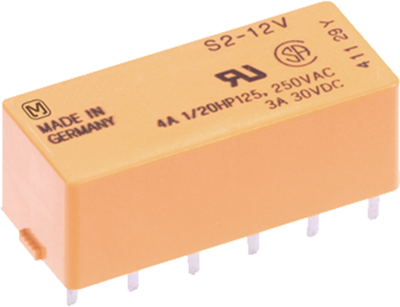

Image may differ

Key Specification:

Contact type 2 Form A (N/O) + 2 Form B (N/C)

switching current 4 A

Coil voltage (DC) 12 V

Coil resistance 720 Ω

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Relay, 2 Form A (N/O) + 2 Form B (N/C), 12 V (DC), 720 Ω, 48 V (DC), 250 V (AC), S2EBL212J

Order No.: 30G1157

Manufacturer: Panasonic

per pc. 16.7433 € *

Go to product

*incl. VAT plus shipping costs

Description

Power relay, type Panasonic S.

High breaking capacity range through 5-layer contact, good RF properties, low thermal voltage, high sensitivity, monostable or bistable; Contact material: Gold-plated + silver alloy. Rated load: 4.0 A/250 VAC, 3.0 A/30 VDC. Switching voltage: max. 250 VAC/30 VDC. Switching current: max. 4.0 A (AC), 3.0 A (DC). Breaking capacity: max. 90 W/1000 VA. Contact resistance: max. 50 mohm. Dielectric strength coil/contact: 1500 VRMS. Response/release time: max. 15/10 ms. Ambient temperatures: –40 to +65 °C. Certifications: UL, CSA.

Bistable Relay, 2 coils, 2 NO + 2 NC, type S2-L2-.

Technical attributes (type, rated coil voltage, coil resistance (±10 %), rated coil power): S2-L2-12V, 12 VDC, 720 ohm, 200 mW

Technical specifications

Filter	Property	Value
	Contact type	2 Form A (N/O) + 2 Form B (N/C)
	switching current	4 A
	Coil voltage (DC)	12 V
	Coil resistance	720 Ω
	Switching Voltage (DC)	30 V
	Switching Voltage (AC)	250 V
	Connection	PCB connection
	Coil type	bistable
	Contact material	Ag alloy
