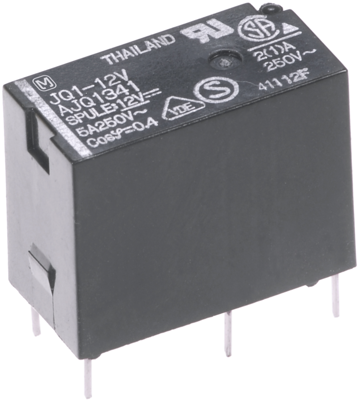

JQ1PB9FT | Panasonic
Relay, 1 Form C (NO/NC), 9 V (DC), 202.5 Ω, 10 A, 110 V (DC), 250 V (AC), monostable, JQ1PB9FT
Order No.: 34G8742
EAN: 4099889406948
MPN:
JQ1PB9FT
JQ1PB-9V-F
This item is no longer available.
As an alternative, we recommend the following item:
Relay, 1 Form C (NO/NC), 9 V (DC), 202.5 Ω, 10 A, 30 V (DC), 250 V (AC), monostable, ALQ109
Order No.: 34G5210
Manufacturer: Panasonic
per pc. 2.1182 € *
Power relay, JQ1PB9FT, PANASONIC
Features
- High electrical noise immunity
- High surge voltage between contacts and coil
- High switching capability
- High sensitivity
Applications
- Air conditioners
- Refrigerators
- Microwave ovens
- Heaters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 9 V | |
| Switching Voltage (DC) | 110 V | |
| Connection | PCB connection | |
| Contact material | AgSnO2 | |
| switching current | 10 A | |
| Coil resistance | 202.5 Ω | |
| Switching Voltage (AC) | 250 V | |
| Coil type | monostable | |
| Contact type | 1 Form C (NO/NC) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
