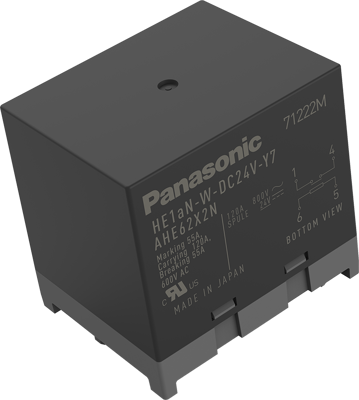

HE1AN-W-DC6V-Y7 | Panasonic
Relay, 1 Form A (N/O), 6 V (DC), 14.4 Ω, 120 A, 60 V (DC), 800 V (AC), monostable, HE1AN-W-DC6V-Y7
Unit Price (€ / pc.)
43.2565 € *
Standard delivery time from the manufacturer is: 15 Weeks
Industrial relay, HE1AN-W-DC6V-Y7, PANASONIC
Features
- High capacity
- Compact size
- High switching capability
- High surge breakdown
Applications
- Inverters
- Battery storage systems
- Stationary charging stand
- Industrial equipments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 6 V | |
| Switching Voltage (DC) | 60 V | |
| Connection | PCB connection | |
| Contact material | AgNi | |
| switching current | 120 A | |
| Coil resistance | 14.4 Ω | |
| Switching Voltage (AC) | 800 V | |
| Coil type | monostable | |
| Contact type | 1 Form A (N/O) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
