APF30260 | Panasonic

Name: Relay, 1 Form C (NO/NC), 60 V (DC), 20.57 kΩ, 6 A, 250 V (AC), monostable, APF30260
Brand: Panasonic
SKU: 30G2068
Availability: InStock

Relay, 1 Form C (NO/NC), 60 V (DC), 20.57 kΩ, 6 A, 250 V (AC), monostable, APF30260

Order No.: 30G2068

EAN: 4099889394429

MPN:

APF30260

Series: APF

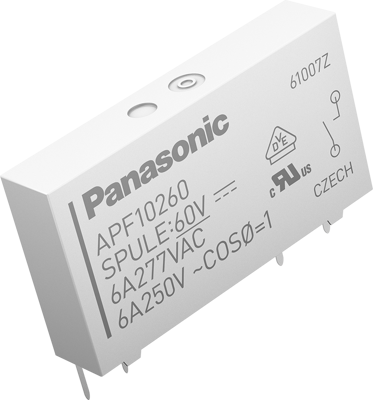

Image may differ

Key Specification:

Contact type 1 Form C (NO/NC)

switching current 6 A

Coil voltage (DC) 60 V

Coil resistance 20.57 kΩ

Show variants: 34

Download Datasheet Technical specifications

Unit Price (€ / pc.)

5.1051 € *

Standard delivery time from the manufacturer is: 13 Weeks

Total Price:

102.10 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Power relay, type Panasonic PF.

For PCB mounting; Switching voltage: 250 VAC. Switching current: 6.0 AAC. Breaking capacity: 1500 VA. Contact resistance: max. 100 mohm. Dielectric strength coil/contact: 4000 Vrms. Pick-up/release time: max. 8.0/4.0 ms. Ambient temperatures: –40 to +85 °C. Certifications: VDE, UL, cUL. Dimensions: L 28, W 5.0, H 15 mm.

With 1 CO and AgNi contacts.

Technical attributes (type, rated voltage, coil power, coil resistance (±10 %)): APF30260, 60 VDC, 175 mW, 20570 ohm

Technical specifications

Filter	Property	Value
	Switching Voltage (AC)	250 V
	Connection	PCB connection
	Coil type	monostable
	Contact type	1 Form C (NO/NC)
	Coil voltage (DC)	60 V
	Contact material	AgNi
	switching current	6 A
	Coil resistance	20.57 kΩ
	Grid	5.04 mm
