APF30248 | Panasonic

Name: Relay, 1 Form C (NO/NC), 48 V (DC), 10.618 kΩ, 6 A, 250 V (AC), monostable, APF30248
Brand: Panasonic
SKU: 30G2065
Availability: InStock

Relay, 1 Form C (NO/NC), 48 V (DC), 10.618 kΩ, 6 A, 250 V (AC), monostable, APF30248

Order No.: 30G2065

EAN: 4099889394412

MPN:

APF30248

Series: APF

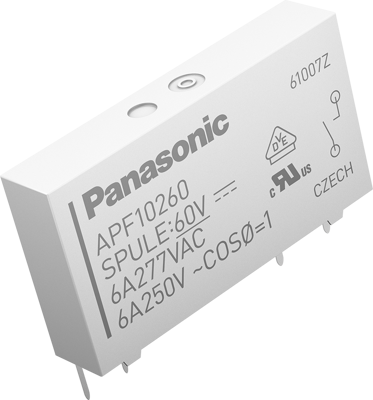

Image may differ

Key Specification:

Contact type 1 Form C (NO/NC)

switching current 6 A

Coil voltage (DC) 48 V

Coil resistance 10.618 kΩ

Show variants: 34

Download Datasheet Technical specifications

Unit Price (€ / pc.)

4.2602 € *

Standard delivery time from the manufacturer is: 22 Weeks

Total Price:

85.20 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Power relay, type Panasonic PF.

For PCB mounting; Switching voltage: 250 VAC. Switching current: 6.0 AAC. Breaking capacity: 1500 VA. Contact resistance: max. 100 mohm. Dielectric strength coil/contact: 4000 Vrms. Pick-up/release time: max. 8.0/4.0 ms. Ambient temperatures: –40 to +85 °C. Certifications: VDE, UL, cUL. Dimensions: L 28, W 5.0, H 15 mm.

With 1 CO and AgNi contacts.

Technical attributes (type, rated voltage, coil power, coil resistance (±10 %)): APF30248, 48 VDC, 217 mW, 10618 ohm

Technical specifications

Filter	Property	Value
	Switching Voltage (AC)	250 V
	Connection	PCB connection
	Coil type	monostable
	Contact type	1 Form C (NO/NC)
	Coil voltage (DC)	48 V
	Contact material	AgNi
	switching current	6 A
	Coil resistance	10.618 kΩ
	Grid	5.04 mm
