APAN314H | Panasonic

Relay, 1 Form A (N/O), 4.5 V (DC), 184 Ω, 5 A, 110 V (DC), 250 V (AC), monostable, APAN314H

Order No.: 34G5456
EAN: 4099889403688
MPN:
APAN314H
Series: PA-N

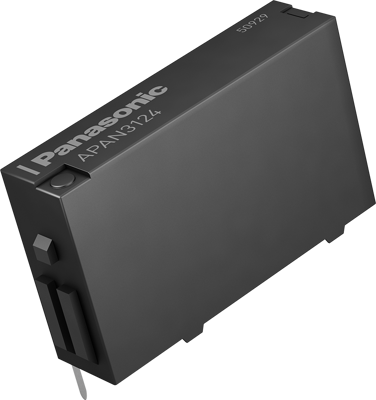

APAN314H Panasonic Industrial Relays
Image may differ

As a private customer, you can buy this item as soon as we have it back in stock.

Power relay, APAN314H, PANASONIC

Visionary industry 4.0 applications require compact and performant ingredients such as the PF and PA-N relays from Panasonic Industry.

The purpose of this power relay is in essence, to reliably switch an ever increasing number of actuators - and a wide variety of load-behavior they may encounter, such as inductive load for valves or motors and many more.

This relay is ideal for programmable controllers, temperature controllers, industrial equipment and measuring devices.

Features

  • High density mounting
  • Low operating power
  • Long insulation distance

Constructively minimized, PA-N relays can be practically used wherever lack of space is a critical factor without revealing any technical compromises in the context of thermal behavior or energy consumption.

Technical specifications
Switching Voltage (AC) 250 V
Coil type monostable
switching current 5 A
Switching Voltage (DC) 110 V
Coil voltage (DC) 4.5 V
Connection PCB connection
Contact type 1 Form A (N/O)
Contact material AgNi + Au
Coil resistance 184 Ω
Logistics
Country of origin CN
Customs tariff number 85364190
Original Packaging Bar with 25 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
