ALQ105 | Panasonic

Relay, 1 Form C (NO/NC), 5 V (DC), 62.5 Ω, 10 A, 30 V (DC), 250 V (AC), monostable, ALQ105

Order No.: 30G7236
EAN: 4099889395549
MPN:
ALQ105
Series: ALQ1

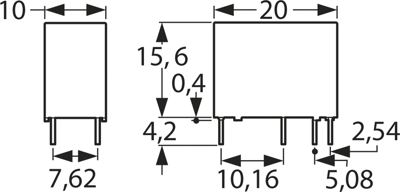

ALQ105 Panasonic Industrial Relays Image 1
ALQ105 Panasonic Industrial Relays Image 2
Image may differ
Unit Price (€ / pc.)
1.8445 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
184.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
1.8445 €

Power relay, type Panasonic ALQ.

Compact slim-line design; Contact material: AgNi. Switching voltage: 250 VAC. Switching current NO/NC: 10 A (125 VAC)/3.0 A (125 VAC). Ambient temperatures: –40 to +85 °C. Dielectric strength coil/contact: 4000 V. Insulation resistance: min. 1000 Mohm.

With one CO contact.

Switching power NO/NC: 150 W, 1250 VA/30 W, 500 VA

Technical attributes (type, coil voltage, coil resistance): ALQ105, 5.0 VDC, 62.5 ohm

Technical specifications
Switching Voltage (AC) 250 V
Coil type monostable
switching current 10 A
Switching Voltage (DC) 30 V
Coil voltage (DC) 5 V
Connection PCB connection
Contact type 1 Form C (NO/NC)
Contact material AgNi
Coil resistance 62.5 Ω
Logistics
Country of origin TH
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
