AGP2009-K | Panasonic
Relay, 1 Form A (N/O), 5 V (DC), 83 Ω, 8 A, 125 V (DC), 250 V (AC), monostable, AGP2009-K
Unit Price (€ / pc.)
5.5097 € *
Standard delivery time from the manufacturer is: On Request

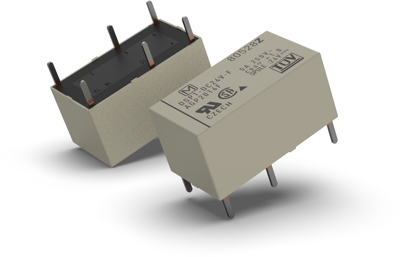

Power relay, type Panasonic DSP.
Compact design, with high breaking capacity, sealed, monostable or bistable; Contact type: 1 NO, 2 NO, or 1 NO + 1 NC. Contact material: AgSnO2. Switching voltage: max. 250 VAC/30 VDC. Contact resistance: max. 30 mohm. Breakdown voltage contact/coil: 3000 VRMS. Pick-up/release time: max. 10/10 ms. Ambient temperatures: –40 to +65 °C. Certifications: TÜV, UL, CSA.
Monostable Relay, 1 NO, type DSP1a-.
Switching current: max. 8.0 AAC/5.0 ADC. Breaking capacity: max. 150 W/2000 VA. Coil power: 300 mW.
Technical attributes (type, rated voltage, coil resistance (±10 %)): DSP1a-5V, 5.0 VDC, 83 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 5 V | |
| Switching Voltage (DC) | 125 V | |
| switching current | 8 A | |
| Coil resistance | 83 Ω | |
| Contact type | 1 Form A (N/O) | |
| Switching Voltage (AC) | 250 V | |
| Coil type | monostable | |
| Connection | PCB connection | |
| Contact material | AgSnO2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
