AGN260S24 | Panasonic

Relay, 2 Form C (NO/NC), 24 V (DC), 4.8 kΩ, 1 A, 110 V (DC), 125 V (AC), monostable, AGN260S24

Order No.: 34G4824
EAN: 4099889400090
MPN:
AGN260S24
Series: GN
AGN260S24 Panasonic Industrial Relays

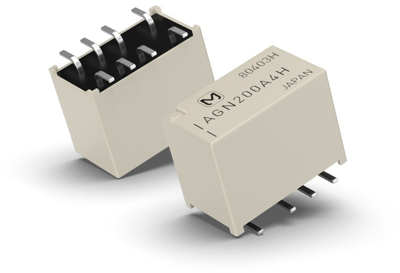

Image may differ
Unit Price (€ / pc.)
3.689 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
184.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
3.689 €

Industrial relay, AGN260S24, PANASONIC

Features

  • High sensitivity single side stable type
  • Outstanding surge resistance
  • Nominal operating power 140 mW
  • RT III Sealed

Applications

  • Telephone switchboard
  • Telecommunications equipment
  • Security equipment
  • Electronic consumer and audio visual equipment
Technical specifications
Switching Voltage (AC) 125 V
Coil type monostable
switching current 1 A
Switching Voltage (DC) 110 V
Coil voltage (DC) 24 V
Connection SMD
Contact type 2 Form C (NO/NC)
Contact material AgPd + Au
Coil resistance 4.8 kΩ
Logistics
Country of origin JP
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
