EEUFR1E470 | Panasonic

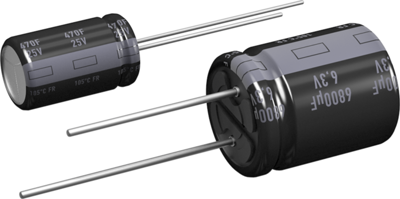

Electrolytic capacitor, 47 µF, 25 V (DC), ±20 %, radial, pitch 2 mm, Ø 5 mm, EEUFR1E470
Unit Price (€ / pc.)
0.3451 € *
Available: 3,488 pcs.
Total Price:
0.35 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3451 €
10 pcs.
0.2142 €
50 pcs.
0.1523 €
250 pcs.
0.1273 €
1000 pcs.
0.1083 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, EEUFR1E470, PANASONIC
Aluminum electrolytic capacitor
Features
- Low ESR
- High rated capacitance
- RoHS-compatible
- Long useful life
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Rated voltage (DC) | 25 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C | |
| Grid | 2 mm | |
| diameter | 5 mm | |
| ESR (Equivalent Series Resistance) | 300 mΩ | |
| Tolerance | ±20 % | |
| Length | 11 mm | |
| Design | radial | |
| Capacity | 47 µF | |
| Ripple current | 280 mA |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 200 pieces |
| Customs tariff number | 85322200 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
