EEUFC1E101S | Panasonic

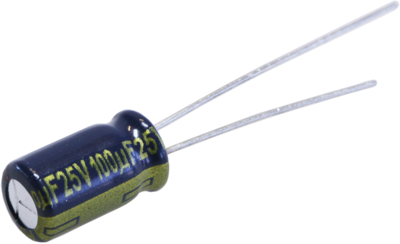

Electrolytic capacitor, 100 µF, 25 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 6.3 mm, EEUFC1E101S
Unit Price (€ / pc.)
0.1214 € *
Standard delivery time from the manufacturer is: On Request

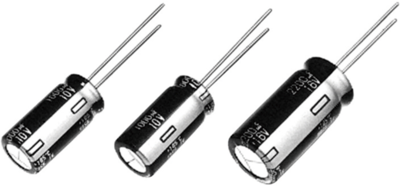

Aluminium electrolytic capacitor, EEUFC1E101S, Panasonic
Radial Lead Type
Features
- Endurance: 105 °C 1000 h to 5000 h
- Low impedance
- RoHS compliant
Applications
- Audio/Visual equipment
- Optical equipment
- Measuring equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 100 µF | |
| diameter | 6.3 mm | |
| max. operating temperature | 105 °C | |
| Length | 11.2 mm | |
| min. operating temperature | -55 °C | |
| Grid | 2.5 mm | |
| Ripple current | 290 mA | |
| Design | radial | |
| ESR (Equivalent Series Resistance) | 350 mΩ | |
| Version | polar | |
| Rated voltage (DC) | 25 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
