EEETPV470XAP | Panasonic
Electrolytic capacitor, 47 µF, 35 V (DC), ±20 %, SMD, Ø 6.3 mm, EEETPV470XAP
Unit Price (€ / pc.)
0.7449 € *
Available: 900 pcs.
Total Price:
0.74 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7449 €
10 pcs.
0.4962 €
100 pcs.
0.4141 €
500 pcs.
0.3594 €
1000 pcs.
0.3273 €
*incl. VAT plus shipping costs
Subject to prior sale

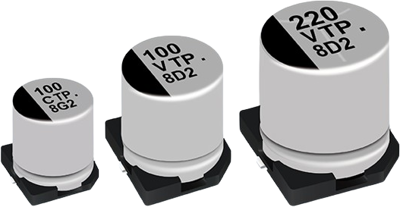

Electrolytic capacitor, EEETPV470XAP, Panasonic
Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.
Features
- Lower ESR at Low temperature after endurance
- Automotive
- AEC-Q200 compliant
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 35 V | |
| Length | 7.7 mm | |
| Design | SMD | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| diameter | 6.3 mm | |
| Ripple current | 197 mA | |
| Version | polar | |
| Capacity | 47 µF | |
| Tolerance | ±20 % | |
| ESR (Equivalent Series Resistance) | 0.45 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85322200 |
| Original Packaging | Reel with 900 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
