EEETPA331UAV | Panasonic
Electrolytic capacitor, 330 µF, 10 V (DC), ±20 %, SMD, Ø 8 mm, EEETPA331UAV
Unit Price (€ / pc.)
1.0579 € *
Standard delivery time from the manufacturer is: On Request

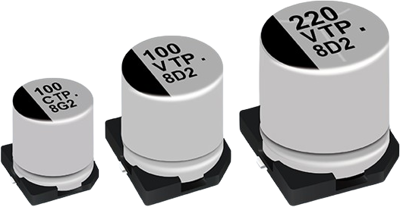

Electrolytic capacitor, EEETPA331UAV, Panasonic
Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.
Features
- Lower ESR at Low temperature after endurance
- Automotive
- AEC-Q200 compliant
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 10 V | |
| Capacity | 330 µF | |
| Length | 10.5 mm | |
| Design | SMD | |
| Version | polar | |
| diameter | 8 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Tolerance | ±20 % | |
| ESR (Equivalent Series Resistance) | 0.2 Ω | |
| Ripple current | 270 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Original Packaging | Reel with 500 pieces |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
