EEETK1H681AV | Panasonic

Electrolytic capacitor, 680 µF, 50 V (DC), ±20 %, SMD, Ø 18 mm, EEETK1H681AV

Order No.: 38D6082
EAN: 4099891910181
MPN:
EEETK1H681AV
Series: TK
EEETK1H681AV Panasonic Electrolytic Capacitors

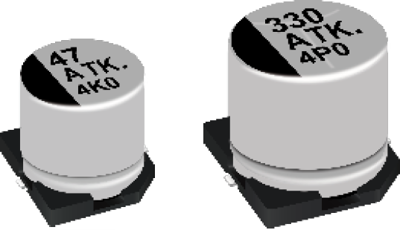

Image may differ
Unit Price (€ / pc.)
2.3122 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
289.02 € *
*incl. VAT plus shipping costs
**Subject to prior sale
125 pcs.
2.3122 €

Electrolytic capacitor, EEETK1H681AV, Panasonic

Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.

Features

  • Low ESR
  • Added ESR specification after the endurance test
  • AEC-Q200 compliant
  • RoHS compliant
Technical specifications
Rated voltage (DC) 50 V
Capacity 680 µF
diameter 18 mm
Length 16.5 mm
Version polar
Design SMD
ESR (Equivalent Series Resistance) 0.14 Ω
min. operating temperature -40 °C
Tolerance ±20 %
max. operating temperature 125 °C
Ripple current 950 mA
Logistics
Country of origin JP
Customs tariff number 85322200
Original Packaging Reel with 125 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
