EEEHC1V221V | Panasonic

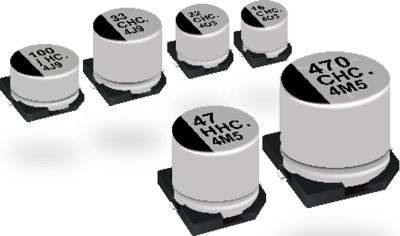

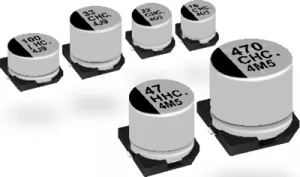

Electrolytic capacitor, 220 µF, 35 V (DC), ±20 %, SMD, Ø 10 mm, EEEHC1V221V

Order No.: 38D5819
EAN: 4099891907518
MPN:
EEEHC1V221V
Series: HC
EEEHC1V221V Panasonic Electrolytic Capacitors
Image may differ
Unit Price (€ / pc.)
0.7664 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
383.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
0.7664 €

Electrolytic capacitor, EEEHC1V221V, Panasonic

Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.

Features

  • AEC-Q200 compliant
  • RoHS compliant
Technical specifications
Rated voltage (DC) 35 V
Capacity 220 µF
diameter 10 mm
Length 10.2 mm
Version polar
Design SMD
min. operating temperature -40 °C
Tolerance ±20 %
max. operating temperature 105 °C
Ripple current 220 mA
Logistics
Country of origin JP
Customs tariff number 85322200
Original Packaging Reel with 500 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
