EEEHC1V221P | Panasonic
Electrolytic capacitor, 220 µF, 35 V (DC), ±20 %, SMD, Ø 10 mm, EEEHC1V221P
Unit Price (€ / pc.)
0.8961 € *
Available: 500 pcs.
Total Price:
0.90 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8961 €
10 pcs.
0.5974 €
100 pcs.
0.4986 €
500 pcs.
0.4332 €
1000 pcs.
0.3939 €
*incl. VAT plus shipping costs
Subject to prior sale

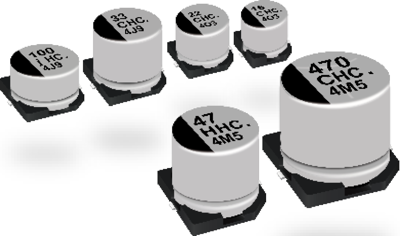

Electrolytic capacitor, EEEHC1V221P, Panasonic
Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.
Features
- AEC-Q200 compliant
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 35 V | |
| Capacity | 220 µF | |
| Length | 10.2 mm | |
| Design | SMD | |
| Version | polar | |
| diameter | 10 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Tolerance | ±20 % | |
| Ripple current | 220 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Original Packaging | Reel with 500 pieces |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
