EEEHC1A221P | Panasonic

Electrolytic capacitor, 220 µF, 10 V (DC), ±20 %, SMD, Ø 8 mm, EEEHC1A221P

Order No.: 38D5789
EAN: 4099891907211
MPN:
EEEHC1A221P
Series: HC
EEEHC1A221P Panasonic Electrolytic Capacitors

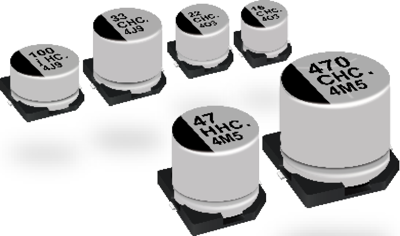

Image may differ
Unit Price (€ / pc.)
0.3273 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
163.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
0.3273 €

Electrolytic capacitor, EEEHC1A221P, Panasonic

Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.

Features

  • AEC-Q200 compliant
  • RoHS compliant
Technical specifications
Filter Property Value
Rated voltage (DC) 10 V
Capacity 220 µF
Length 10.2 mm
Design SMD
Version polar
diameter 8 mm
max. operating temperature 105 °C
min. operating temperature -40 °C
Tolerance ±20 %
Ripple current 160 mA
Logistics
Property Value
Customs tariff number 85322200
Original Packaging Reel with 500 pieces
Country of origin MY
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
