EEEHBJ470UAR | Panasonic

Electrolytic capacitor, 47 µF, 6.3 V (DC), ±20 %, SMD, Ø 4 mm, EEEHBJ470UAR

Order No.: 38D5770
EAN: 4099891907020
MPN:
EEEHBJ470UAR
Series: HB(A)
EEEHBJ470UAR Panasonic Electrolytic Capacitors

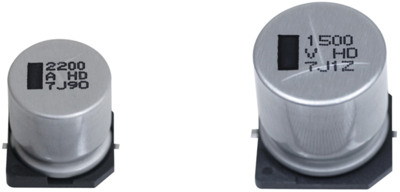

Image may differ
Unit Price (€ / pc.)
0.1249 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
249.90 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2000 pcs.
0.1249 €

Electrolytic capacitor, EEEHBJ470UAR, Panasonic

Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.

Features

  • AEC-Q200 compliant
  • RoHS compliant
Technical specifications
Rated voltage (DC) 6.3 V
Capacity 47 µF
diameter 4 mm
Length 5.8 mm
Version polar
Design SMD
min. operating temperature -40 °C
Tolerance ±20 %
max. operating temperature 105 °C
Ripple current 26 mA
Logistics
Country of origin MY
Customs tariff number 85322200
Original Packaging Reel with 2,000 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
