EEEFN1K220P | Panasonic

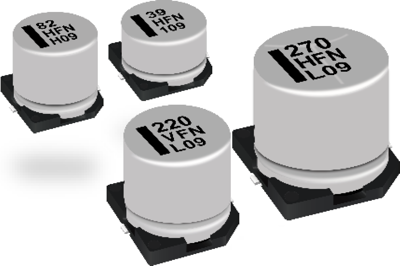

Electrolytic capacitor, 22 µF, 80 V (DC), SMD, Ø 8 mm, EEEFN1K220P
Unit Price (€ / pc.)
0.4403 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
220.15 € *
Price list
Quantity
Price per unit*
500 pcs.
0.4403 €
1000 pcs.
0.3927 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, EEEFN1K220P, Panasonic
Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.
Features
- High capacitance
- AEC-Q200 compliant
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 8 mm | |
| Ripple current | 130 mA | |
| max. operating temperature | 105 °C | |
| Rated voltage (DC) | 80 V | |
| Length | 10.2 mm | |
| Capacity | 22 µF | |
| Design | SMD | |
| min. operating temperature | -55 °C | |
| ESR (Equivalent Series Resistance) | 1.3 Ω | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Reel with 500 pieces |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
