EEEFN1J220XL | Panasonic

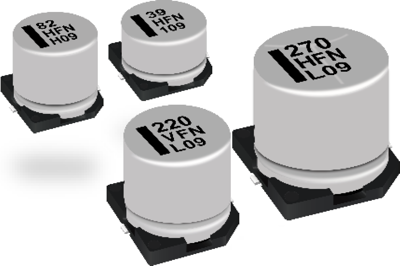

Electrolytic capacitor, 22 µF, 63 V (DC), SMD, Ø 6.3 mm, EEEFN1J220XL
Unit Price (€ / pc.)
0.2011 € *
Standard delivery time from the manufacturer is: On Request
Electrolytic capacitor, EEEFN1J220XL, Panasonic
Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.
Features
- High capacitance
- AEC-Q200 compliant
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 22 µF | |
| diameter | 6.3 mm | |
| max. operating temperature | 105 °C | |
| Length | 7.7 mm | |
| min. operating temperature | -55 °C | |
| Ripple current | 120 mA | |
| Design | SMD | |
| ESR (Equivalent Series Resistance) | 1.2 Ω | |
| Version | polar | |
| Rated voltage (DC) | 63 V |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 900 pieces |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
