EEEFK1V162SM | Panasonic

Electrolytic capacitor, 1600 µF, 35 V (DC), ±20 %, SMD, Ø 16 mm, EEEFK1V162SM

Order No.: 38D5038
EAN: 4099891903114
MPN:
EEEFK1V162SM
Series: FKS
EEEFK1V162SM Panasonic Electrolytic Capacitors

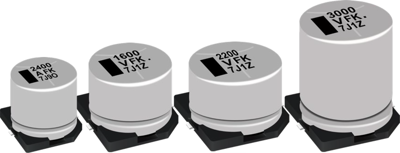

Image may differ
Unit Price (€ / pc.)
1.3507 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
168.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
125 pcs.
1.3507 €

Electrolytic capacitor, EEEFK1V162SM, Panasonic

Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.

Features

  • High capacitance
  • AEC-Q200 compliant
  • RoHS compliant
Technical specifications
Rated voltage (DC) 35 V
Capacity 1600 µF
diameter 16 mm
Length 16.5 mm
Version polar
Design SMD
min. operating temperature -55 °C
Tolerance ±20 %
max. operating temperature 105 °C
Ripple current 1800 mA
Logistics
Country of origin JP
Customs tariff number 85322200
Original Packaging Reel with 125 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
