EEEFK1J680UL | Panasonic

Electrolytic capacitor, 68 µF, 63 V (DC), SMD, Ø 8 mm, EEEFK1J680UL

Order No.: 38D4987
EAN: 4099891914981
MPN:
EEEFK1J680UL
Series: FK

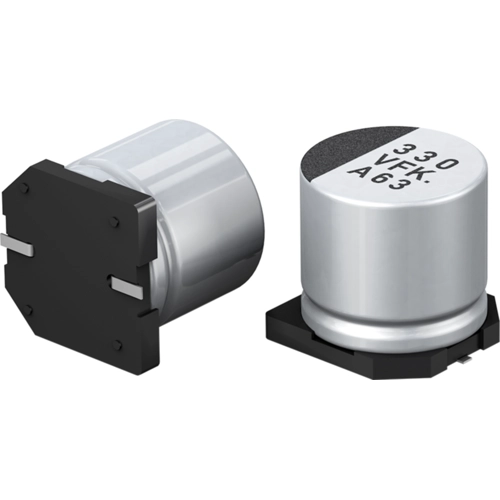

EEEFK1J680UL Panasonic Electrolytic Capacitors Image 1
EEEFK1J680UL Panasonic Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.3868 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
193.38 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
0.3868 €

Electrolytic capacitor, EEEFK1J680UL, Panasonic

Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.

Features

  • Low impedance
  • Miniaturized
  • AEC-Q200 compliant
  • RoHS compliant
Technical specifications
Rated voltage (DC) 63 V
Capacity 68 µF
diameter 8 mm
Length 10.2 mm
Version polar
Design SMD
min. operating temperature -55 °C
max. operating temperature 105 °C
Ripple current 250 mA
Logistics
Country of origin MY
Customs tariff number 85322200
Original Packaging Reel with 500 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
