EEEFK0J352SQ | Panasonic

Electrolytic capacitor, 3500 µF, 6.3 V (DC), ±20 %, SMD, Ø 12.5 mm, EEEFK0J352SQ

Order No.: 38D4739
EAN: 4099891900755
MPN:
EEEFK0J352SQ
Series: FKS
EEEFK0J352SQ Panasonic Electrolytic Capacitors

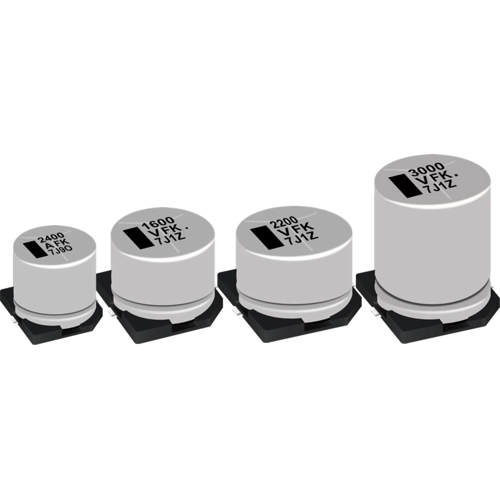

Image may differ
Unit Price (€ / pc.)
0.8259 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
165.17 € *
*incl. VAT plus shipping costs
**Subject to prior sale
200 pcs.
0.8259 €

Electrolytic capacitor, EEEFK0J352SQ, Panasonic

Surface mount aluminum electrolytic capacitor is used in electronic applications for it's compact size and high capacitance value.

Features

  • High capacitance
  • AEC-Q200 compliant
  • RoHS compliant
Technical specifications
Rated voltage (DC) 6.3 V
Capacity 3500 µF
diameter 12.5 mm
Length 13.5 mm
Version polar
Design SMD
min. operating temperature -55 °C
Tolerance ±20 %
max. operating temperature 105 °C
Ripple current 1100 mA
Logistics
Country of origin JP
Customs tariff number 85322200
Original Packaging Reel with 200 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
