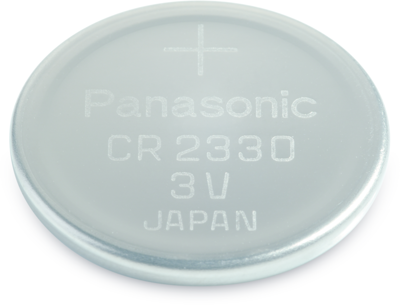

CR-2330 | Panasonic
Lithium-button cell, CR2330, 3 V, 265 mAh, CR-2330
Order No.: 26A5060
EAN: 4099891613877
MPN:
CR-2330
Unit Price (€ / pc.)
1.5351 € *
Standard delivery time from the manufacturer is: 1 Week
Lithium Battery, CR-2330, Panasonic
Technical data
- Nominal capacity: 0,265 Ah
- Application: Car key
- Nominal voltage: 3 V
- IEC Designation: CR2330
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Technology | lithium | |
| IEC designation | CR2330 | |
| Connection | surface contact | |
| Usage | car key | |
| Rated voltage | 3 V | |
| Nominal capacity | 265 mAh | |
| diameter | 23 mm | |
| Height | 3 mm | |
| max. operating temperature | 60 °C | |
| min. operating temperature | -30 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85065030 |
| Country of origin | ID |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | No |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| Date of RoHS guidelines | 3/31/15 |
