CR-1632 | Panasonic
Lithium-button cell, CR1632, 3 V, 140 mAh, CR-1632
Order No.: 26A5056
EAN: 4099891613839
MPN:
CR-1632
Unit Price (€ / pc.)
1.7374 € *
Available: 409 pcs.
Total Price:
17.37 € *
Price list
Quantity
Price per unit*
10 pcs.
1.7374 €
50 pcs.
1.5232 €
250 pcs.
1.3090 €
1000 pcs.
1.1662 €
2500 pcs.
1.0472 €
*incl. VAT plus shipping costs
Subject to prior sale

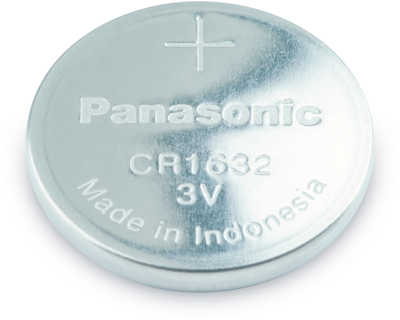

Lithium Battery, CR-1632, Panasonic
The CR1632 lithium button cell has a proven track record for devices where traditional batteries cannot be used. The battery can be used in digital watches, car keys, fitness equipment, calculators and in medical devices such as a clinical thermometer or tensiometer.
Features
- A complete range for use in numerous applications
- Can be used in a wide temperature range (-30 °C to +60 °C)
- Very low self-discharge; long shelf life of up to 10 years
- No mercury added
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Technology | lithium | |
| IEC designation | CR1632 | |
| Connection | surface contact | |
| Usage | watches/devices | |
| Rated voltage | 3 V | |
| Nominal capacity | 140 mAh | |
| diameter | 16 mm | |
| Height | 3 mm | |
| max. operating temperature | 60 °C | |
| min. operating temperature | -30 °C | |
| Version | low drain |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85065030 |
| Country of origin | ID |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | No |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| Date of RoHS guidelines | 3/31/15 |
