CR-1025 | Panasonic
Lithium-button cell, CR1025, 3 V, 32 mAh, CR-1025
Order No.: 26A5052
EAN: 4099891613792
MPN:
CR-1025
Unit Price (€ / pc.)
1.5113 € *
Available: 52 pcs.
Total Price:
1.51 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5113 €
10 pcs.
1.3566 €
50 pcs.
1.2257 €
100 pcs.
1.1305 €
*incl. VAT plus shipping costs
Subject to prior sale

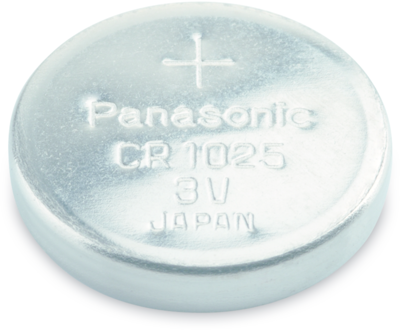

Lithium Battery, CR-1025, Panasonic
The CR1025 lithium button cell has a proven track record for devices where conventional batteries cannot be used.
Features
- Very low self-discharge; long shelf life of up to 10 years
- Can be used in a wide temperature range (-30 °C to +60 °C)
- Very high weight to performance ratio
- High leakage protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 10 mm | |
| Connection | surface contact | |
| Rated voltage | 3 V | |
| Technology | lithium | |
| max. operating temperature | 60 °C | |
| Usage | watches/devices | |
| Height | 2 mm | |
| IEC designation | CR1025 | |
| Nominal capacity | 32 mAh | |
| min. operating temperature | -30 °C | |
| Version | high drain |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ID |
| Customs tariff number | 85065030 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| RoHS conform | not_relevant |
| SVHC free | No |
