ASFP 80392 | Panasonic

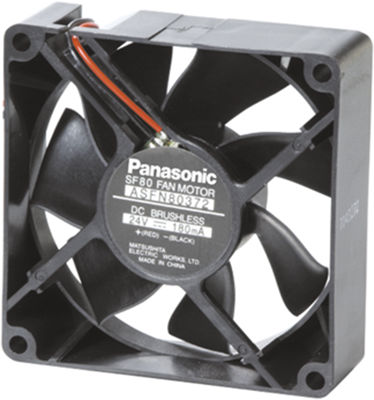

DC axial fan, 24 V, 80 x 80 x 25 mm, 65.4 m³/h, 32.5 dB, ball bearing, Panasonic ASFP 80392
No longer available from manufacturer
Unit Price (€ / pc.)
30.7139 € *
Available: 2 pcs.
Total Price:
30.71 € *
Price list
Quantity
Price per unit*
1 pcs.
30.7139 €
5 pcs.
28.8694 €
15 pcs.
27.7627 €
50 pcs.
26.5370 €
150 pcs.
25.4303 €
*incl. VAT plus shipping costs
Subject to prior sale
DC Axial fan, ASFP 80392, PANASONIC
Features
- Reverse polarity power connection
- Ball bearing system
- Rated voltage: 24 V DC
- Material housing: plastic
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 24 V | |
| Width | 80 mm | |
| Height | 80 mm | |
| Depth | 25 mm | |
| Volume flow | 65.4 m³/h | |
| Sound pressure level | 32.5 db | |
| speed | 2950 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 4.32 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
