SFH 309 FA-3/4 | Osram Opto Semi
Phototransistor THT 730..1120nm 4500µA 7µs 3mm (4x4 x5.2mm) 24° SFH 309 FA-3/4
Unit Price (€ / pc.)
0.1523 € *
Standard delivery time from the manufacturer is: 12 Weeks

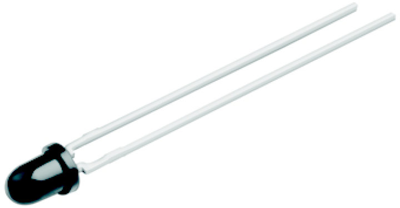

Phototransistor, SFH 309 FA-3/4, Osram Opto Semi
Silicon NPN Phototransistor
Features
- Package: clear silicone
- Spectral range of sensitivity: (typ) 730 - 1120 nm
- High photosensitivity
- High linearity
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Voltage | 35 V | |
| Wavelength | 900 nm | |
| Power loss | 165 mW | |
| Enclosure | T1 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85414900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
