Q65113A2453 | Osram Opto Semi
LED, SMD, 1212, blue, 472 nm, 6.4 cd, 110°, Q65113A2453
Order No.: 71S1425
EAN: 4099879011589
MPN:
Q65113A2453
LB CRBP.01-GXHY-26-Y474-350-R18
Series: LB CRBP.01
Unit Price (€ / pc.)
1.7017 € *
Standard delivery time from the manufacturer is: 1 Week

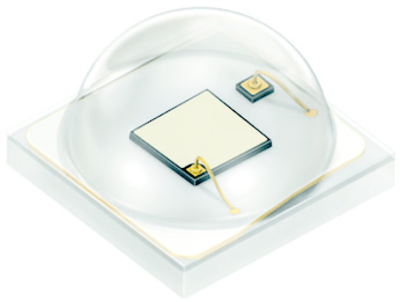

Signal LED, Q65113A2453, Osram
The OSLON Signal combines a compact form factor with high efficiency and electrically insulated thermal pad. The square package matches optical center with the mechanical center.
This provides easy clustering flexibility and high packing density for a maximum flux density. The color bins are defined for best fit to most signaling norms.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | 1212 | |
| Width | 3 mm | |
| Number of LEDs | 1 | |
| Light intensity typ. | 6.4 cd | |
| max. operating temperature | 125 °C | |
| Lens | clear | |
| On-State Voltage | 2.9 V | |
| Wavelength | 472 nm | |
| Length | 3 mm | |
| Assembly | SMD | |
| Radiation angle | 110 ° | |
| Forward Current | 350 mA | |
| min. operating temperature | -40 °C | |
| Colour of the LED | blue |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Original Packaging | Reel with 600 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
