Q65113A1683 | Osram Opto Semi
LED, SMD, white, 2800 to 4500 mcd, 120°, Q65113A1683
Order No.: 71S1422
EAN: 4099879011558
MPN:
Q65113A1683
KW DCLMS2.EC-CXCZ-4L7M-1-20-R18
Series: Q6511
Unit Price (€ / pc.)
0.1916 € *
Standard delivery time from the manufacturer is: 1 Week

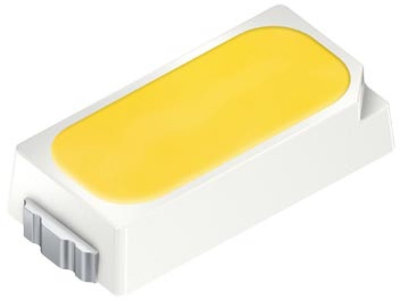

Top LED, Q65113A1683, Osram Opto Semi
The TOPLED Compact 3014 has a wide beam angle with a compact format (3.0 mm x 1.4 mm) and is a very small LED for screen backlighting. It has colour temperature of 4000 K. It is therefore ideal for injecting in light guides for homogeneous illumination applications where the TOPLED Compact 3014 never fails to impress with its performance on system level.
Applications
- Electronic equipment
- White goods
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour of the LED | white | |
| Width | 1.4 mm | |
| On-State Voltage | 2.9 V | |
| Lens | yellow | |
| Light intensity min. | 2.8 cd | |
| Forward Current | 20 mA | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Number of LEDs | 1 | |
| Radiation angle | 120 ° | |
| Light intensity typ. | 4.5 cd | |
| Length | 3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
