Q65113A1680 | Osram Opto Semi
LED, SMD, white, 2240 to 3550 mcd, 110°, Q65113A1680
As a private customer, you can buy this item as soon as we have it back in stock.

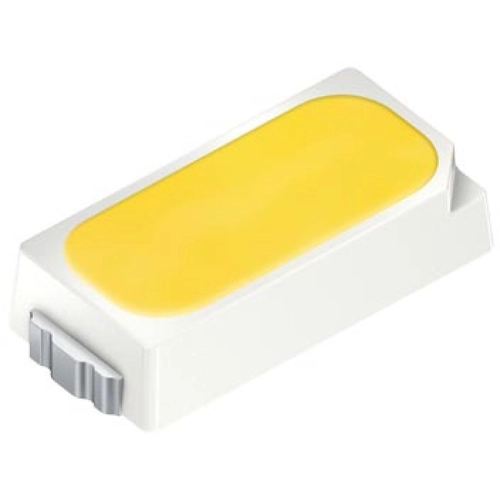

Top LED, Q65113A1680, Osram Opto Semi
The TOPLED Compact 3014 has a wide beam angle with a compact format (3.0 mm x 1.4 mm) and is a very small LED for screen backlighting. It is therefore ideal for injecting in light guides for homogeneous illumination applications where the TOPLED Compact 3014 never fails to impress with its performance on system level.
Applications
- Electronic equipment
- Gaming, Amusement, Gambling
- White goods
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Number of LEDs | 1 | |
| Colour of the LED | white | |
| Light intensity min. | 2.24 cd | |
| Light intensity typ. | 3.55 cd | |
| Radiation angle | 110 ° | |
| Lens | yellow | |
| On-State Voltage | 2.9 V | |
| Forward Current | 20 mA | |
| Length | 3 mm | |
| Width | 1.4 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | CN |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
