Q65112A5627 | Osram Opto Semi
LED, SMD, red, 623 nm, 3.5 to 9 cd, 120°, Q65112A5627
Order No.: 72S7086
EAN: 4099879017345
MPN:
Q65112A5627
SMD LED rd 623nm 3,5.. 9 cd PLCC-6 120°
Unit Price (€ / pc.)
0.5712 € *
Standard delivery time from the manufacturer is: 1 Week

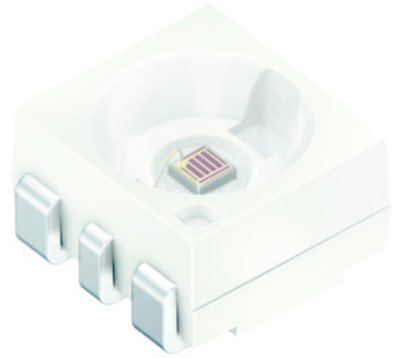

SMT LED, Q65112A5627, Osram
Advanced power TOPLED, red. Latest version of Advanced Power TOPLED with increased brightness and improved thermal management.
Features
- Corrosion Robustness
- Colorless clear silicone resin
- High brightness
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 3 mm | |
| Number of LEDs | 1 | |
| Light intensity typ. | 9 cd | |
| max. operating temperature | 125 °C | |
| Lens | clear | |
| On-State Voltage | 2.2 V | |
| Wavelength | 623 nm | |
| Length | 3.3 mm | |
| Assembly | SMD | |
| Radiation angle | 120 ° | |
| Forward Current | 140 mA | |
| min. operating temperature | -40 °C | |
| Colour of the LED | red | |
| Light intensity min. | 3.5 cd |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | CN |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
