Q65111A6727 | Osram Opto Semi
LED, SMD, PLCC-6, Ø 2.4 mm, amber, 625 nm, 0.014 cd, 120°, Q65111A6727
Unit Price (€ / pc.)
0.1488 € *
Standard delivery time from the manufacturer is: 12 Weeks
Power led, Q65111A6727, Osram Opto Semi

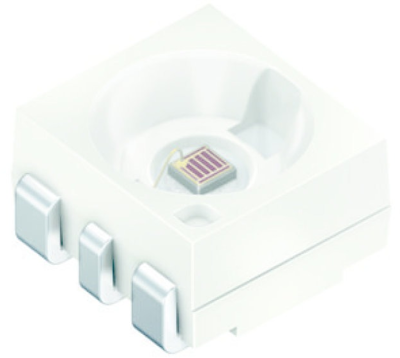

The Q65111A6727 is an advanced power TOPLED that features a compact package with a wide brightness range and high luminous efficiency.
Applications
- Custom tuning
- Interior illumination
- Signalling
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 2.4 mm | |
| Radiation angle | 120 ° | |
| Lens | clear | |
| Wavelength | 625 nm | |
| Forward Current | 200 mA | |
| max. operating temperature | 110 °C | |
| Length | 3.5 mm | |
| Number of LEDs | 1 | |
| Light intensity typ. | 0.014 cd | |
| Assembly | SMD | |
| Width | 3.2 mm | |
| min. operating temperature | -40 °C | |
| On-State Voltage | 2.5 V | |
| Enclosure | PLCC-6 | |
| Colour of the LED | amber |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1,000 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
