Q65111A0884 | Osram Opto Semi
LED, SMD, 2218, red/green/blue/white, 632 nm, 120°, Q65111A0884
Order No.: 69S5412
EAN: 4099879011534
MPN:
Q65111A0884
Stage, Q65111A0884, Osram Opto Semi

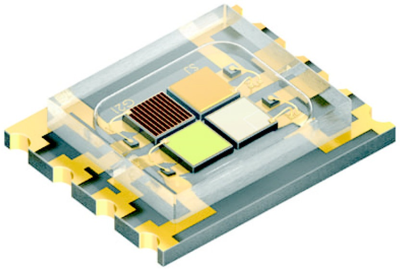

The Q65111A0884 is a compact lightsource in SMT technology, glass window on top, RoHS compliant.
Applications
- Architecture
- Mood lighting
- Stage lighting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | 2218 | |
| Number of LEDs | 4 | |
| Colour of the LED | red/green/blue/white | |
| Radiation angle | 120 ° | |
| Lens | clear | |
| On-State Voltage | 3.45 V | |
| Forward Current | 700 mA | |
| Wavelength | 632 nm | |
| Length | 5.9 mm | |
| Width | 4.83 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Original Packaging | Reel with 500 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
